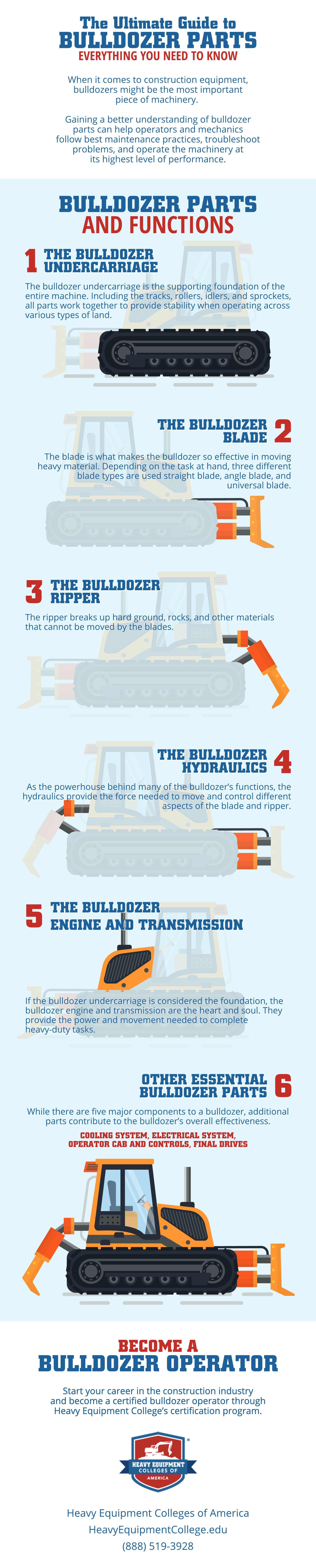

The Ultimate Guide to Bulldozer Parts: Everything You Need to Know

When it comes to construction equipment, bulldozers might be the most important piece of machinery. Not only do they provide the muscle needed to manage heavy-duty projects, but they also save time in land clearing, excavating, grading, and demolition. They’re the reason many large-scale construction projects meet tight deadlines.


Understanding how a bulldozer functions and its different working parts is key to construction workers’ safety and work efficiency. From the blade and tracks to the complex engine and hydraulic systems, familiarizing yourself with bulldozer parts ensures correct machine maintenance and operation.

Table of Contents

Bulldozer Parts and Functions

Between the engine that powers the bulldozer and the tracks and blades that do heavy lifting, each part works together to make sure the machine functions properly. Gaining a better understanding of bulldozer parts can help operators and mechanics follow best maintenance practices, troubleshoot problems, and operate the machinery at its highest level of performance.

1. The Bulldozer Undercarriage

The bulldozer undercarriage is the supporting foundation of the entire machine. Including the tracks, rollers, idlers, and sprockets, all parts work together to provide stability when operating across various types of land.

  • Tracks: Durable steel evenly distributes the bulldozer’s weight, limiting the chance of sinking when operating over soft, muddy, or uneven surfaces.
  • Rollers: Mounted on the undercarriage frame to support weight, rollers ensure track movement remains smooth. There are two types of rollers: carrier rollers (top) and track rollers (bottom).
  • Idlers: Often placed at the front and back of tracks, idlers help prevent derailing by managing track tension.
  • Sprockets: Positioned at the back of the bulldozer, sprockets use engine power to move the tracks backward and forward.
The Bulldozer Undercarriage
The Bulldozer Undercarriage

2. The Bulldozer Blade

The blade is what makes the bulldozer so effective in moving heavy material. Depending on the task at hand, three different blade types are used:

  • Straight Blade (S-Blade): This short, straight blade is used to fine grade, even out surfaces and backfill. Due to its simplicity and lack of side wings, this blade is suitable for pushing materials over short distances.
  • Angle Blade (A-Blade): This blade is used for tasks that require pushing materials from side to side, like ditching, windrowing, and snow removal. Due to the blade’s angled side wings, it has more precise placement control.
  • Universal Blade (U-Blade): With large side wings and a curved shape, this blade carries more material over longer distances. It is often used for heavy-duty tasks that require moving soil, sand, and gravel.
  • Semi-U Blade: This blade is a combination of the S-blade and the U-blade. With smaller side wings and a slightly curved shape, it offers heavy lifting ability and precision placement. It’s often used for tasks like crowning and ditching.

3. The Bulldozer Ripper

The ripper breaks up hard ground, rocks, and other materials that cannot be moved by the blades.

Purpose of the Ripper and How It Works:

The ripper breaks apart rough surfaces, making it easier for the blades to pick up loosened material. The blade is made of a shank that drives into the ground with a sharp pointed tip. When lowered to the ground and raked through the material, the point cuts into the ground, tearing it apart.


Types of Ripper Shanks:

Single Shank Ripper: This ripper has one shank used for heavy-duty ripping projects. It is used to break apart materials like rock, compacted soil, and other materials needing significant force.
Multi-Shank Ripper: This ripper has multiple shanks, and is used for lighter projects. It covers a larger area of land and is most efficient in breaking up asphalt and frozen ground.

Technology Advancements in the Heavy Equipment Industry

Discover the revolution in heavy equipment technology! Our guide reveals its construction impact and realistic challenges to overcome.

Read More

4. Bulldozer Hydraulics

As the powerhouse behind many of the bulldozer’s functions, the hydraulics provide the force needed to move and control different aspects of the blade and ripper.


Overview of the Hydraulic System

Pressurized fluid turns into force and movement, offering control over the bulldozer’s movements. The hydraulic system is essential to blade and ripper operation. Its main purpose is to control the bulldozer with accuracy.


Key Components

  • Pump: Powered by the bulldozer’s engine, the pump generates the pressure needed to move the hydraulic fluid through the system.
  • Valves: Responsible for controlling the flow and direction of hydraulic fluid, the valves help the operator manage the movement of different attachments.
  • Cylinders: In charge of activating pressurized fluid, the cylinders drive the movement of the blade, ripper, and other attachments.
  • Hoses: Hydraulic hoses move the pressurized fluid between pumps, valves, and cylinders, ensuring the hydraulic system functions properly.

5. Bulldozer Engine and Transmission

If the bulldozer undercarriage is considered the foundation, the bulldozer engine and transmission are the heart and soul. They provide the power and movement needed to complete heavy-duty tasks.

Importance of the Engine and Transmission for Power and Movement:


The bulldozer does not function unless the engine generates horsepower. As a result, the transmission uses this energy to move the bulldozer, allowing the machine to push, pull, and maneuver across various terrain types. These two parts work together to ensure the bulldozer functions properly.

Types of Engines Used in Bulldozers:

  • Diesel Engines: Most bulldozers use diesel fuel engines because of the force output and fuel efficiency. Diesel engines are capable of handling high-demand construction tasks, as well as consistently performing through tough conditions.

Transmission Types:

  • Hydrostatic Transmission: This transmission type uses hydraulic fluid to power the tracks, leading to precise control over speed and direction. Known for their smooth operation and speed adjustment capabilities, they are used for fine grading and intricate projects.
  • Powershift Transmission: This type uses gears to transfer power, letting the operator shift gears rather than stopping the machine. Well known for its ability to handle the heavy lifting, it is often used for tasks that require significant pushing and pulling power.

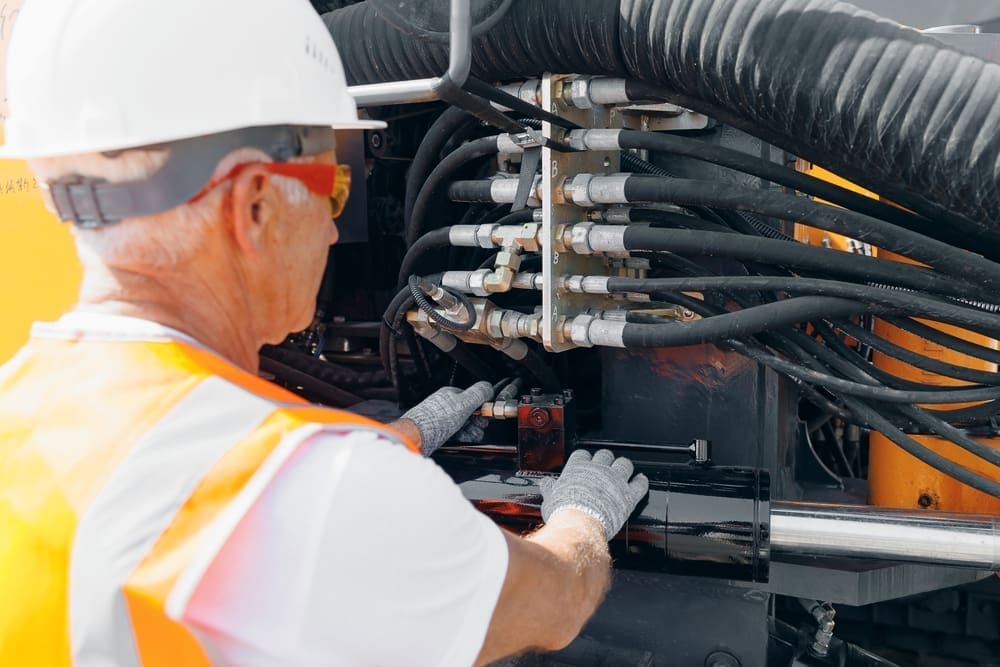

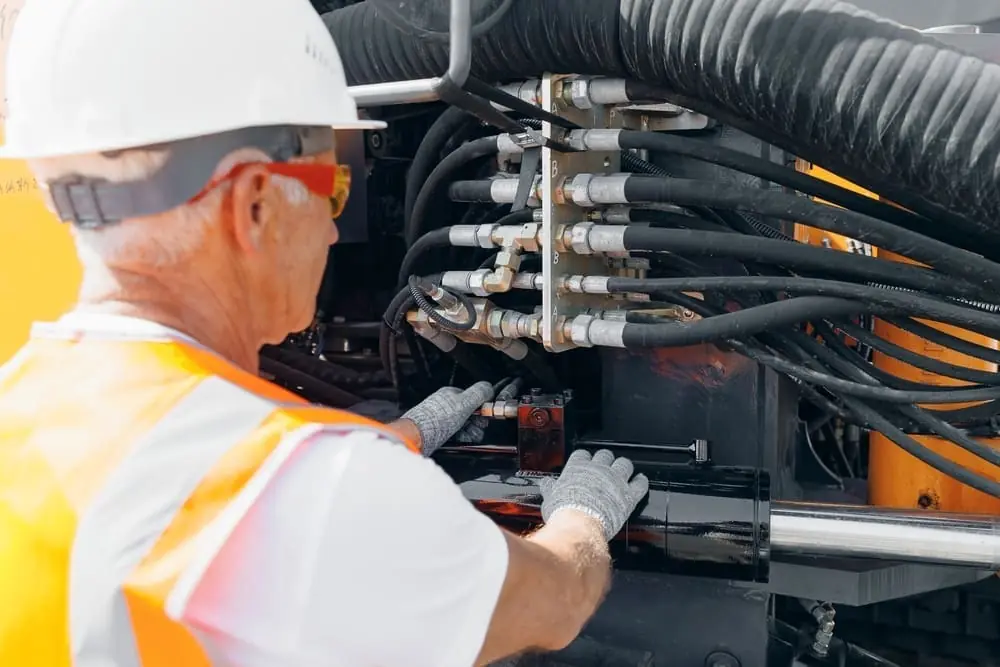

Bulldozer Engine and Transmission
Bulldozer Engine and Transmission

6. Other Essential Bulldozer Parts

While there are five major components to a bulldozer, additional parts contribute to the bulldozer’s overall effectiveness.

  • Cooling System: The cooling system ensures the engine maintains a safe temperature, preventing overheating. A radiator, fan, water pump, and coolant work together to eliminate heat put off by the engine.
  • Electrical System: This part powers the lights, controls, and other electrical components, including the battery, alternator, wiring, sensors, and switches. It ensures the machine operates safely.
  • Operator Cab and Controls: The cab is a safe environment for the operator to manage the machine. It includes access to controls for the blade, rippers, and other attachments. Many modern cabs have climate control, advanced monitoring systems, and comfortable seating.
  • Final Drives: These components transfer power from the transmission to the tracks. Their purpose is to provide the needed force to move the bulldozer. Final drives include gears and shafts designed to manage high loads and ensure smooth operation.

Bulldozer Maintenance Tips

Routine bulldozer maintenance is essential for longevity and performance ability. Below are a few tips to keep your machine in top-notch condition:

General Maintenance Practices

  • Daily Inspections: Check fluid levels, inspect tracks, and look for signs of wear and damage.
  • Weekly Maintenance: Lubricate moving parts, check hydraulic fluid levels, and inspect the blade and ripper.
  • Monthly Checks: Inspect the undercarriage, engine, and transmission for leaks and wear.
  • Annual Service: Get oil and filter changes, a coolant replacement, and an inspection for the five major components.

Importance of Using Genuine Parts and Lubricants

It is essential to use parts and lubricants specifically made for your bulldozer. Using products that are not tailored to your machine can damage it. Buying compatible lubricants and parts can actually reduce the risk of engine breakdown.

Safety Precautions

  • Personal Protective Equipment (PPE): Wear gloves, safety glasses, and steel-toed boots.
  • Lockout/Tagout Procedures: Turn off the bulldozer before beginning maintenance.
  • Proper Tools and Training: Only operate the machine once training is complete.
